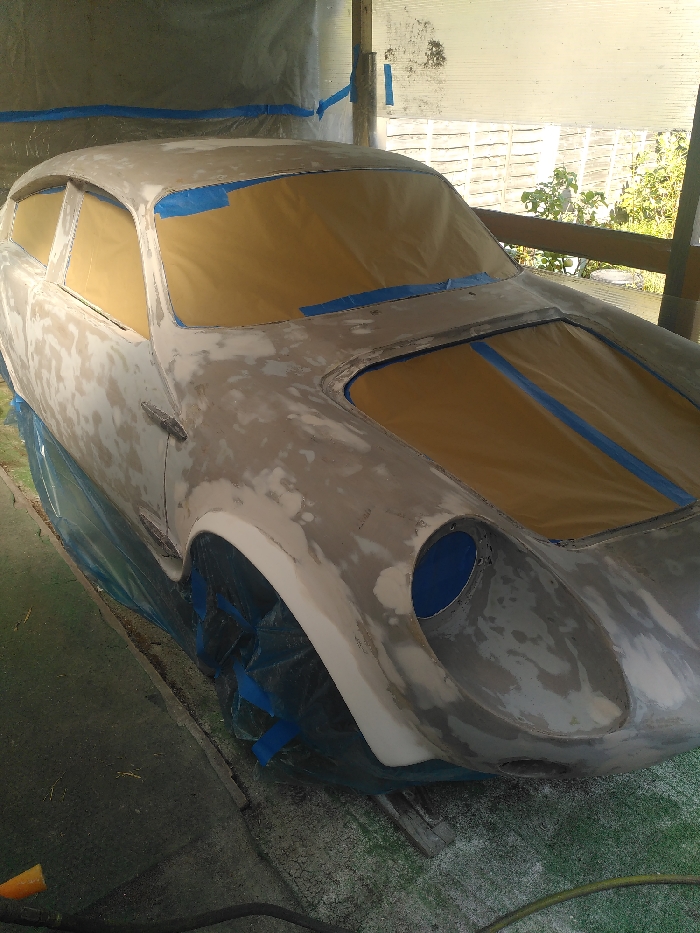

  Author    Grannies Great Aunt!  (currently 3,235 views)
Pete Crudgington
Posted on: October 29th, 2017, 09:27:17

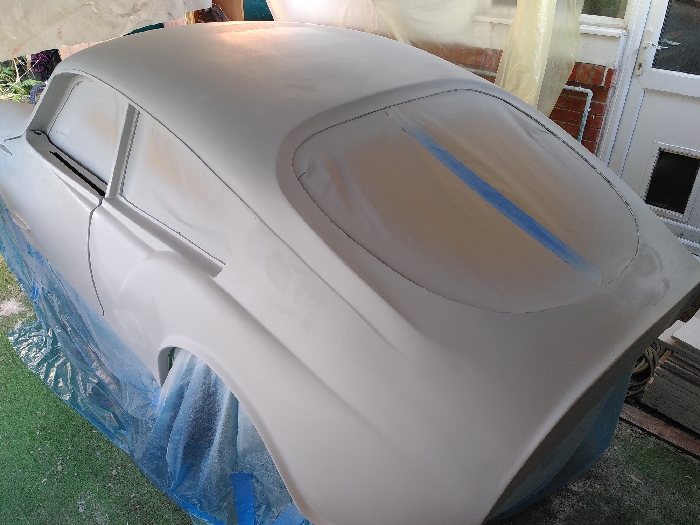

Attachment: rear_view.jpg - 167.01 KB (982 views)
Quote Report to Moderator
Big Member


Location: Bath
Posts: 254

Reputation: 0 (tot: )
last one!

Logged Offline
Private Message Reply: 60 - 74
Pete Crudgington
Posted on: March 10th, 2018, 12:17:35
Attachment: 29062718_2100943753469078_3780851846583681024_n.jpg - 84.35 KB (869 views)
Quote Report to Moderator
Big Member


Location: Bath
Posts: 254

Reputation: 0 (tot: )
Jem now has a T45 filly TIG welded multi point cage fitted by Ben as Caged Laser.  FIA appendix K regs dent allow the front stays but as I quite like working legs they are fitted!

Logged Offline
Private Message Reply: 61 - 74
Pete Crudgington
Posted on: March 10th, 2018, 12:18:09
Attachment: 28958342_2100943723469081_8240199081578725376_n.jpg - 122.44 KB (869 views)
Quote Report to Moderator
Big Member


Location: Bath
Posts: 254

Reputation: 0 (tot: )
and another view

Logged Offline
Private Message Reply: 62 - 74
Pete Crudgington
Posted on: March 10th, 2018, 12:18:34
Attachment: 28871769_2100943673469086_48243641059115008_n.jpg - 95.08 KB (869 views)
Quote Report to Moderator
Big Member


Location: Bath
Posts: 254

Reputation: 0 (tot: )
one more

Logged Offline
Private Message Reply: 63 - 74
mike brown
Posted on: March 10th, 2018, 21:30:42 Quote Report to Moderator
Big Member







Location: Southampton
Posts: 353
Love the cage. I assume the gear linkage is going over that front cage tube and the exhaust is going under.
Mike
Logged Offline
Private Message Reply: 64 - 74
Pete Crudgington
Posted on: March 11th, 2018, 08:38:58 Quote Report to Moderator
Big Member


Location: Bath
Posts: 254

Reputation: 0 (tot: )
Mike gear linkage will be in car so rod will pass over tube.  Exhaust will also go over tube as I want to run this higher in the tunnel out of the wind.  The front cross bar pick up on the subframe mounts when Dean Robertson had his big hit a few years ago the subframe came up through the floor!  Lots and lots to do!
Logged Offline
Private Message Reply: 65 - 74
Neil KilBane
Posted on: March 12th, 2018, 11:30:04 Quote Report to Moderator
Maximum Member2





just a little fine tuning left to do.


Location: Newtown Forbes, Ireland
Posts: 1,379

Reputation: 0 (tot: )
Wow.


I'll leave it at that.


Logged Offline
Private Message Reply: 66 - 74
Rodger Howard
Posted on: March 13th, 2018, 07:43:48 Quote Report to Moderator
Medium Member


Location: Melbourne Australia
Posts: 162

Reputation: 0 (tot: )
A very nice job Pete. I went a little further and picked up the rear shock mounts as well as some tortional rigidity around the occupants How have you handled the connection to The subframe towers? Crush tubes and threads in the subframe?
Logged Offline
Private Message Reply: 67 - 74
Pete Crudgington
Posted on: March 18th, 2018, 16:48:20
Attachment: 20180318_163452_resized.jpg - 49.23 KB (765 views)
Quote Report to Moderator
Big Member


Location: Bath
Posts: 254

Reputation: 0 (tot: )
Generally you are not allowed for feed suspension forces directly in to a roll cage so you need to be careful picking up on the shocker tops.

The front legs go forward between the two bolts the hold the subframe to the crossmember.  A single bolt then bolts the end of the tube to the crossmember.

Logged Offline
Private Message Reply: 68 - 74
Pete Crudgington
Posted on: March 18th, 2018, 16:48:49
Attachment: 20180318_163519_resized.jpg - 147.38 KB (744 views)
Quote Report to Moderator
Big Member


Location: Bath
Posts: 254

Reputation: 0 (tot: )
from inside

Logged Offline
Private Message Reply: 69 - 74
Ian_Davies
Posted on: February 10th, 2019, 20:39:45 Quote Report to Moderator
Baby Member


Posts: 17
Hello Pete,
Looking good so far. I’m a bit behind you  with my mk 2 jem Hillclimb car. I’ve owned it since 1989. Looking at your forward facing bars to the front crossMember , I assume you are able to put the rubber springs in without the compression tool? Or have you offset the bar to allow access to the hole. I wouldn’t mind copying this if possible.
Also , are you intending to run in road going class.
I’m building mine to run slicks so will probably be in with the racing Caterham type things.
I’ll upload some images when I work out how to do it !!
Regards
Ian
Logged Offline
Private Message Reply: 70 - 74
Ian_Davies
Posted on: February 10th, 2019, 20:41:04 Quote Report to Moderator
Baby Member


Posts: 17
Why is # 8217 everywhere!!
Logged Offline
Private Message Reply: 71 - 74
Neil KilBane
Posted on: February 11th, 2019, 11:44:49 Quote Report to Moderator
Maximum Member2





just a little fine tuning left to do.


Location: Newtown Forbes, Ireland
Posts: 1,379

Reputation: 0 (tot: )
It's &#8217 and its the HTML code for the right single quotation mark, I suspect a keyboard setting issue as I presume you were intending to use an apostrophe.


Logged Offline
Private Message Reply: 72 - 74
Ian_Davies
Posted on: February 11th, 2019, 19:16:21 Quote Report to Moderator
Baby Member


Posts: 17
Thanks Neil
Makes sense now.
Ian
Logged Offline
Private Message Reply: 73 - 74
simon5666
Posted on: March 23rd, 2020, 19:52:13 Quote Report to Moderator
Baby Member


Posts: 14
I wondered if anyone has got force racing to make mini marcos / jem parts out of titanium?  They produce very high quality parts
Logged Offline
Private Message Reply: 74 - 74
